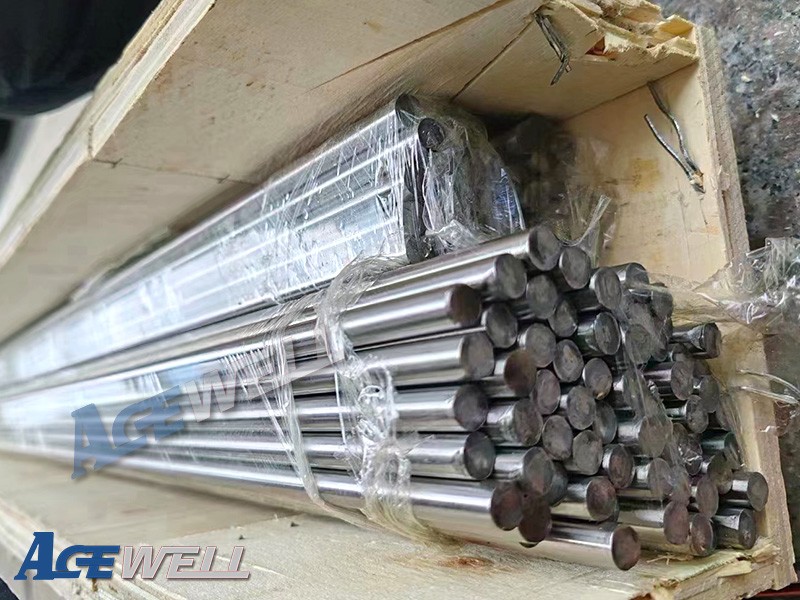

309/309S/310/310S Stainless Steel Bar/Rod

Product Item : ACE4-1-2
Category： Stainless Steel Bar
Grade: 309, 309S, 310, 310S
Standard: ASTM, GB, EN, JIS, GOST, DIN
Diameter: Cold Rolled φ2-50mm Hot Rolled φ5-110mm Forged φ110-550mm
Length: 0.5-12m as required
Product description：309 Stainless Steel Bar, 309S Stainless Steel Rod, 310 Stainless Steel Bar, 310S Stainless Steel Rod
INQUIRY EMAIL

Acewell Industry is one of the top manufacturers and suppliers in 309/309S/310/310S stainless steel bar/rod. We have more than 20 years of experiences in producing high quality stainless steel and alloy products. We provide the best prices, high quality, good service, and quick delivery time.

Product Details: Type 309—better temperature resistance than 304, also sometimes used as filler metal when welding dissimilar steels, along with inconel. Type 310 310S— is a highly alloyed austenitic stainless steel used for high temperature application. The high chromium and nickel content give the steel excellent oxidation resistance as well as high strength at high temperature. This grade is also very ductile, and has good weldability enabling its widespread usage in many applications.

Grade	309/309S/310/310S
Standard	ASTM, JIS, AISI, GB, DIN, EN
Diameter	Cold Rolled φ2-50mm/Hot Rolled φ5-110mm/Forged φ110-550mm
Length	0.5-12m as required
Tolerance	H9 H11
Surface	No.1, 2B, BA, No.4, Hairline, 8K, Mirror
Shape	Round, Square, Rectangular, Triangle, Hex, Thread Bar

Chemical Components

	C	Mn	P	S	Si	Cr	Ni	Mo
309S	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	22.0-24.0	12.0-16.0	≤0.75
309H	0.04-0.10	≤2.00	≤0.045	≤0.03	≤1.00	22.0-24.0	12.0-16.0
310S	≤0.08	≤2.00	≤0.035	≤0.03	≤1.00	24.0-26.0	19.0-22.0	≤0.75
310H	0.04-0.10	≤0.045	≤0.045	≤0.03	≤1.00	24.0-26.0	19.0-22.0

Physical Properties

	Tensile Strength (MPA)	Yield Strength (MPA)	Elongation %	Density
309	≥515	≥205	≥40	7.98
309H	≥485	≥170	≥40	7.98
310	≥515	≥205	≥40	7.98
310S	≥515	≥205	≥40	7.98

Applictaion: 310/310S find wide application in all high-temperature environments where scaling and corrosion resistance, as well as high temperature strength and good creep resistance are required.

Inspection: Strict inspection is from raw materials to finished product. Eddy Current Testing before packaging is must. Unqualified products will be destroyed. Third party inspection is accepted.

Package: Wooven bags, plywood box, wooden box, plastic cap on both ends, or customized. Standard export sea-worthy packaging, inner waterproof paper with outer iron packaging which is fixed on a fumigated woodenpallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Certificates: We have ISO, SGS, TUV, BV etc.

Shipping Service: We have self-operated logistics at cost price, and cooperate with overseas agents all over the world to make delivery safely, timely and easily.
