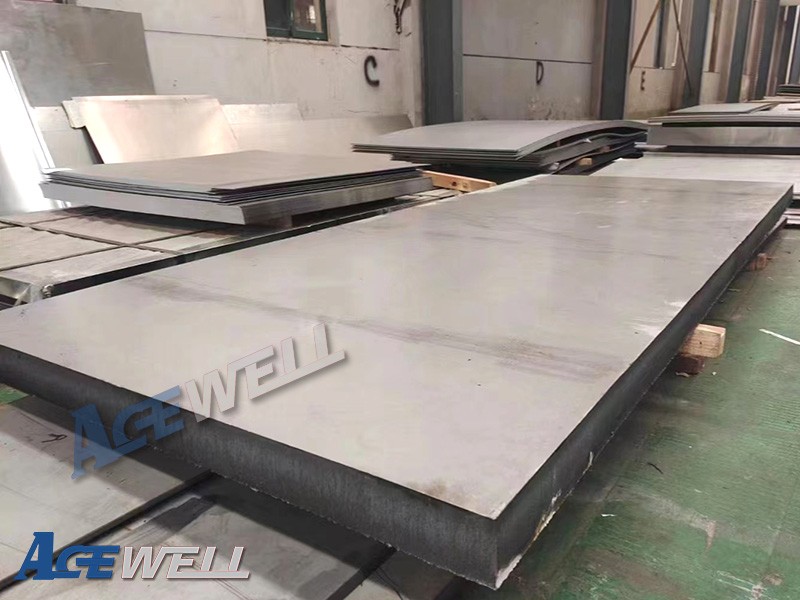

309/309S/310/310S Stainless Steel Sheet/Plate

Product Item : ACE2-1-2
Category： Stainless Steel Sheet
Grade: 309, 309S, 310, 310S
Standard: ASTM, GB, EN, JIS, GOST, DIN
Thickness: Cold rolled:0.2-3.0mm Hot rolled:3.0-60mm
Width: 50-2500mm
Product description：309 Stainless Steel Sheet, 309S Stainless Steel Plate, 310 Stainless Steel Sheet, 310S Stainless Steel Plate
INQUIRY EMAIL

Acewell Industry is one of the top manufacturers and suppliers in 309/309S/310/310S stainless steel sheet/plate. We have more than 20 years of experiences in producing high quality stainless steel and alloy products. We provide the best prices, high quality, good service, and quick delivery time.

Product Details: Type 309—better temperature resistance than 304, also sometimes used as filler metal when welding dissimilar steels, along with inconel. Type 310 310S— is a highly alloyed austenitic stainless steel used for high temperature application. The high chromium and nickel content give the steel excellent oxidation resistance as well as high strength at high temperature. This grade is also very ductile, and has good weldability enabling its widespread usage in many applications.

Grade	309/309S/310/310S
Standard	ASTM, JIS, AISI, GB, DIN, EN
Thickness	Cold rolled:0.2-3.0mm/Hot rolled:3.0-60mm
Width	50-2500mm
Length	1-12m or as required
Surface	No.1, 2B, BA, No.4, Hairline, 8K, Mirror

Chemical Components

	C	Mn	P	S	Si	Cr	Ni	Mo
309S	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	22.0-24.0	12.0-16.0	≤0.75
309H	0.04-0.10	≤2.00	≤0.045	≤0.03	≤1.00	22.0-24.0	12.0-16.0
310S	≤0.08	≤2.00	≤0.035	≤0.03	≤1.00	24.0-26.0	19.0-22.0	≤0.75
310H	0.04-0.10	≤0.045	≤0.045	≤0.03	≤1.00	24.0-26.0	19.0-22.0

Physical Properties

	Tensile Strength (MPA)	Yield Strength (MPA)	Elongation %	Density
309	≥515	≥205	≥40	7.98
309H	≥485	≥170	≥40	7.98
310	≥515	≥205	≥40	7.98
310S	≥515	≥205	≥40	7.98

Applictaion: 310/310S find wide application in all high-temperature environments where scaling and corrosion resistance, as well as high temperature strength and good creep resistance are required.

Inspection: Strict inspection is from raw materials to finished product. Eddy Current Testing before packaging is must. Unqualified products will be destroyed. Third party inspection is accepted.

Package: Wooven bags, plywood box, wooden box, plastic cap on both ends, or customized. Standard export sea-worthy packaging, inner waterproof paper with outer iron packaging which is fixed on a fumigated woodenpallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Certificates: We have ISO, SGS, TUV, BV etc.

Shipping Service: We have self-operated logistics at cost price, and cooperate with overseas agents all over the world to make delivery safely, timely and easily.
