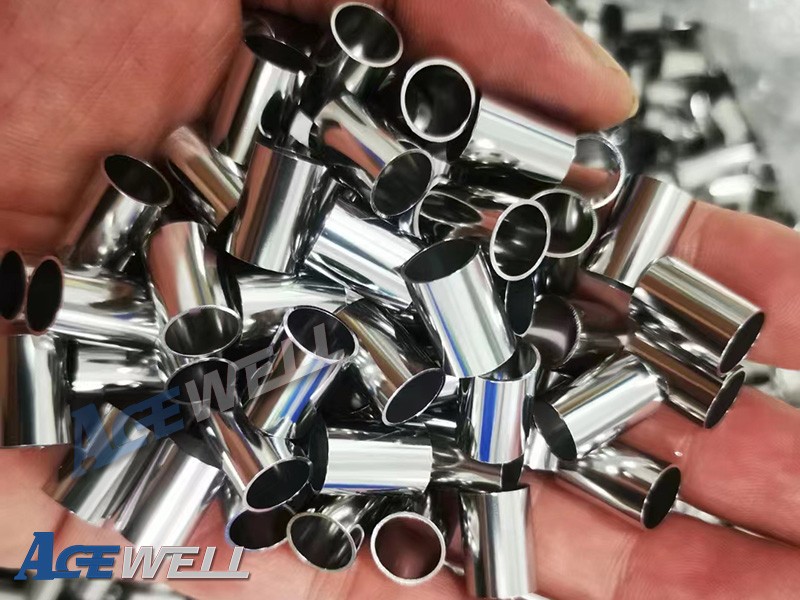

400S Stainless Steel Capillary

Product Item : ACE-1-2-1
Category： Stainless Steel Capillary
Grade: 409, 410, 420, 430, 444, 446, 431, 440
Standard: ASTM, GB, EN, JIS, GOST, DIN
Outer Diameter: 0.2 to 16mm
Thickness: 0.05 to 1mm
Product description：Stainless Capillary, 409 Capillary, 420 Capillary, 446 Capillary
INQUIRY EMAIL

Acewell Industry is one of the top manufacturers and suppliers in 400S Stainless Steel Capillary. We have more than 20 years of experiences in producing high quality stainless steel and alloy products. We provide the best prices, high quality, good service, and quick delivery time.

Product Details:

Grade	409, 410, 420, 430, 444, 446, 431, 440
Standard	ASTM, JIS, AISI, GB, DIN, EN
Outer Diameter	0.2 to 16mm
Thickness	0.05 to 1mm
Length	0.01-6m or as required

Chemical Components

	C	Mn	P	S	Si	Cr	Ni	Mo
409	≤0.08	≤1.00	≤0.045	≤0.03	≤1.00	10.5-11.75	≤0.5
410	0.8-0.15	≤1.00	≤0.04	≤0.03	≤1.00	11.0-13.5
420	≥0.15	≤1.00	≤0.04	≤0.03	≤1.00	12.0-14.0
430	≤0.12	≤1.00	≤0.04	≤0.03	≤1.00	16.0-18.0
444	≤0.025	≤1.00	≤0.04	≤0.03	≤1.00	17.5-19.5	≤1.00	1.75-2.5
446	≤0.2	≤1.00	≤0.04	≤0.03	≤1.00	23.0-27.0	≤0.75
431	≤0.2	≤1.00	≤0.04	≤0.03	≤1.00	15.0-17.0	1.25-2.5
440A	0.6-0.75	≤1.00	≤0.04	≤0.03	≤1.00	16.0-18.0		≤0.75
440B	0.75-0.95	≤1.00	≤0.04	≤0.03	≤1.00	16.0-18.0		≤0.75
440C	0.95-1.2	≤1.00	≤0.04	≤0.03	≤1.00	16.0-18.0		≤0.75

Physical Properties

	Tensile Strength (MPA)	Yield Strength (MPA)	Elongation %	Density
409	≥515	≥205	≥40	7.7
410	≥440	≥205	≥20	7.7
430	≥415	≥207	≥20	7.8
444	≥415	≥310	≥20	7.7
446	≥450	≥275	≥20	7.75

Applictaion: Stainless Steel Capillary is widely used in chemical industry, petroleum, electronics, jewelry, medical treatment, aerospace, air conditioning, medical equipment, kitchen utensils, pharmaceuticals, water supply equipment, food machinery, power generation, boilers and other fields.

Inspection: Strict inspection is from raw materials to finished product. Eddy Current Testing before packaging is must. Unqualified products will be destroyed. Third party inspection is accepted.

Package: Wooven bags, plywood box, wooden box, plastic cap on both ends, or customized. Standard export sea-worthy packaging, inner waterproof paper with outer iron packaging which is fixed on a fumigated woodenpallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Certificates: We have ISO, SGS, TUV, BV etc.

Shipping Service: We have self-operated logistics at cost price, and cooperate with overseas agents all over the world to make delivery safely, timely and easily.
