  • Stainless Steel Embossed Sheet/Plate
  • Stainless Steel Embossed Sheet/Plate
Stainless Steel Embossed Sheet/PlateStainless Steel Embossed Sheet/Plate

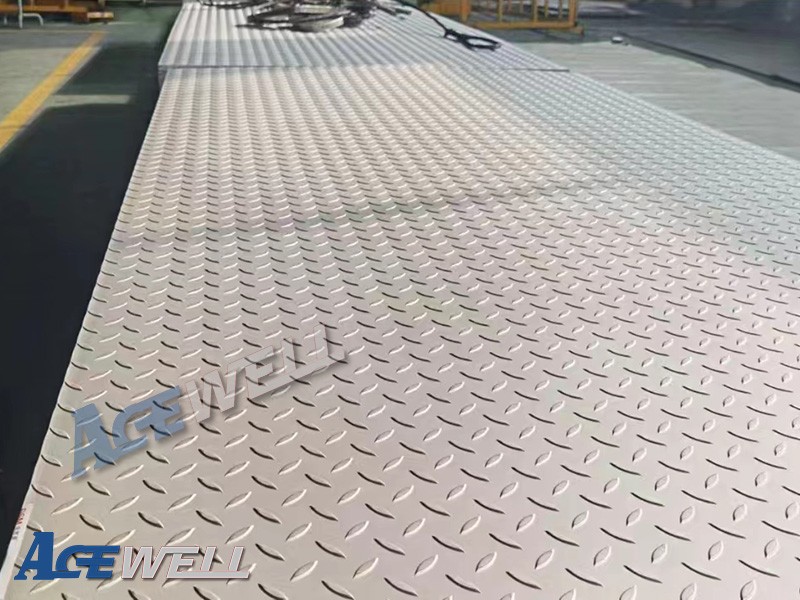

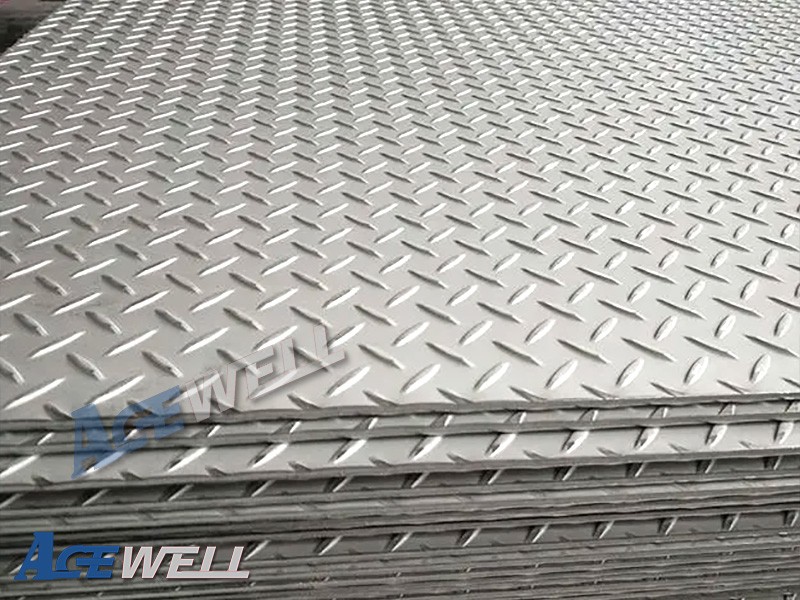

Stainless Steel Embossed Sheet/Plate

  • Product Item : ACE2-2-1
  • Category: Processed Sheet Plate
  • 300s,400s,600s,Duplex,Alloy
  • Standard: ASTM, GB, EN, JIS, GOST, DIN
  • Thickness: Cold rolled:0.2-3.0mm Hot rolled:3.0-60mm
  • Width: 50-2500mm
  • Product description:SS Embossed Sheet, SS Embossed Plate, Stainless Steel Embossed Sheet, Stainless Steel Embossed Plate
  • INQUIRY   EMAIL

Acewell Industry is one of the top manufacturers and suppliers in Embossed Sheet/Plate. We have more than 20 years of experiences in producing high quality stainless steel and alloy products. We provide the best prices, high quality, good service, and quick delivery time.

Product Details:

Grade
300S/400s/600s/Duplex/Alloy
Standard
ASTM, JIS, AISI, GB, DIN, EN
Thickness
Cold rolled:0.2-3.0mm/Hot rolled:3.0-60mm
Width
50-2500mm
Length
1-12m or as required
Surface
No.1, 2B, BA, No.4, Hairline, 8K, Mirror
Chemical Components


C
Mn P S Si Cr Ni
Mo
304
≤0.08
≤2.00
≤0.045
≤0.03
≤1.00
18.0-20.0
8.0-11.0

304L
≤0.03
≤2.00
≤0.045
≤0.03
≤1.00
18.0-20.0
8.0-11.0

316
≤0.08
≤2.00
≤0.045
≤0.03
≤0.75
16.0-18.0
10.0-14.0
2.0-3.0
316L ≤0.03
≤2.00
≤0.045
≤0.03
≤0.75
16.0-18.0
10.0-14.0
2.0-3.0
321
≤0.08
≤2.00
≤0.045
≤0.03
≤1.00
17.0-19.0
9.0-12.0

309S
≤0.08
≤2.00
≤0.045
≤0.03
≤1.00
22.0-24.0
12.0-16.0
≤0.75
310S
≤0.08
≤2.00
≤0.035
≤0.03
≤1.00
24.0-26.0
19.0-22.0
≤0.75
317
≤0.08
≤2.00
≤0.045
≤0.03
≤1.00
18.0-20.0
11.0-14.0
3.0-4.0
317L ≤0.035
≤2.00
≤0.045
≤0.03
≤1.00
18.0-20.0
11.0-15.0
3.0-4.0

Physical Properties


Tensile Strength (MPA)
Yield Strength (MPA)
Elongation %
Density
304 ≥515
≥205
≥40
7.93
304L ≥485
≥170
≥40
7.93
316 ≥515
≥205
≥40
7.98
316L ≥485
≥170
≥40
7.98
321 ≥515
≥205
≥40
7.98
309S ≥515
≥205
≥40
7.98
310S ≥515
≥205
≥40
7.98
317 ≥515
≥205
≥40
7.98
317L ≥515
≥205
≥40
7.98

Inspection: Strict inspection is from raw materials to finished product. Eddy Current Testing before packaging is must. Unqualified products will be destroyed. Third party inspection is accepted.

Package: Wooven bags, plywood box, wooden box, plastic cap on both ends, or customized. Standard export sea-worthy packaging, inner waterproof paper with outer iron packaging which is fixed on a fumigated woodenpallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Certificates: We have ISO, SGS, TUV, BV etc.

Shipping Service: We have self-operated logistics at cost price, and cooperate with overseas agents all over the world to make delivery safely, timely and easily.
