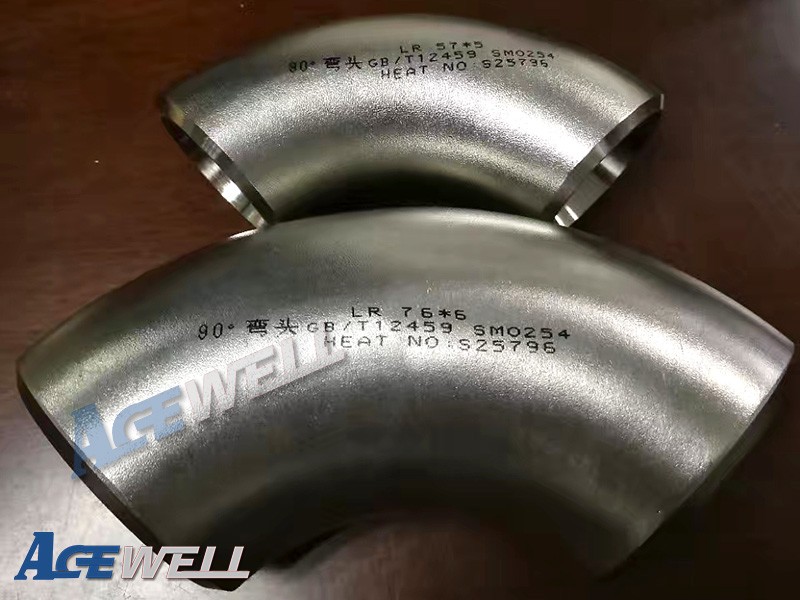

Stainless Steel Elbow

Product Item : ACE5-1-1
Category： Stainless Steel Fitting
Grade: 300s,400s,600s,Duplex,Alloy
Standard: ASTM, GB, EN, JIS, GOST, DIN
Type: 45°，90°，180°，SR, LR
Product description：Elbow, SS Elbow, Stainless Elbow, Stainless Steel Elbow, 304/316 Stainless Steel Elbow
INQUIRY EMAIL

Acewell Industry is one of the top manufacturers and suppliers in Stainless Steel Elbow. We have more than 20 years of experiences in producing high quality stainless steel and alloy products. We provide the best prices, high quality, good service, and quick delivery time.

Product Details:

Grade	300S/400s/600s/Duplex/Alloy
Standard	ASTM, JIS, AISI, GB, DIN, EN
Type	45°, 90°, 180°, SR, LR

Chemical Components

	C	Mn	P	S	Si	Cr	Ni	Mo
304	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	8.0-11.0
304L	≤0.03	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	8.0-11.0
316	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
316L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
321	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	17.0-19.0	9.0-12.0
309S	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	22.0-24.0	12.0-16.0	≤0.75
310S	≤0.08	≤2.00	≤0.035	≤0.03	≤1.00	24.0-26.0	19.0-22.0	≤0.75
317	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	11.0-14.0	3.0-4.0
317L	≤0.035	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	11.0-15.0	3.0-4.0

Physical Properties

	Tensile Strength (MPA)	Yield Strength (MPA)	Elongation %	Density
304	≥515	≥205	≥40	7.93
304L	≥485	≥170	≥40	7.93
316	≥515	≥205	≥40	7.98
316L	≥485	≥170	≥40	7.98
321	≥515	≥205	≥40	7.98
309S	≥515	≥205	≥40	7.98
310S	≥515	≥205	≥40	7.98
317	≥515	≥205	≥40	7.98
317L	≥515	≥205	≥40	7.98

Applictaion: Connect two pipes with the same or different nominal diameters to make turns at 90°, 45°, 180°, and various degrees.

Inspection: Strict inspection is from raw materials to finished product. Eddy Current Testing before packaging is must. Unqualified products will be destroyed. Third party inspection is accepted.

Package: Wooven bags, plywood box, wooden box, plastic cap on both ends, or customized. Standard export sea-worthy packaging, inner waterproof paper with outer iron packaging which is fixed on a fumigated woodenpallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Certificates: We have ISO, SGS, TUV, BV etc.

Shipping Service: We have self-operated logistics at cost price, and cooperate with overseas agents all over the world to make delivery safely, timely and easily.
