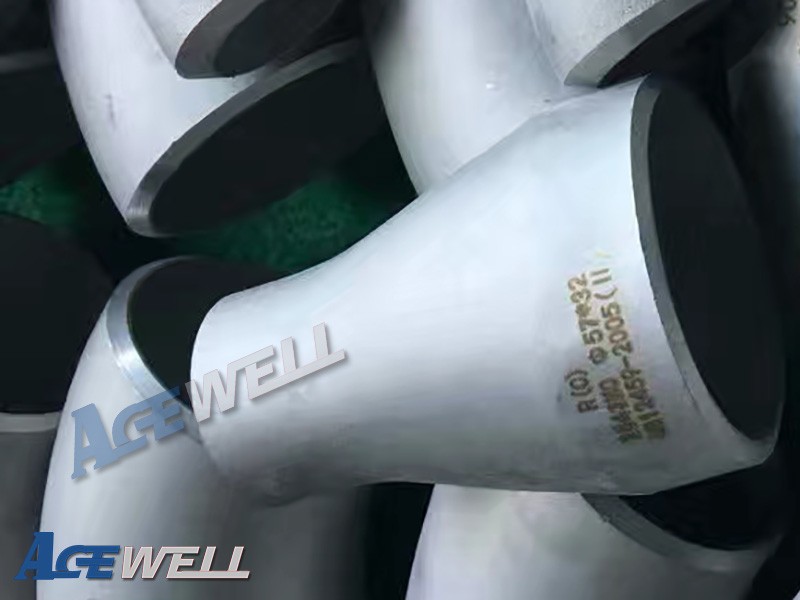

Stainless Steel Reducer

Product Item : ACE5-1-3
Category： Stainless Steel Fitting
Grade: 300s,400s,600s,Duplex,Alloy
Standard: ASTM, GB, EN, JIS, GOST, DIN
Type: concentric reducer, eccentric reducer
Product description：Reducer, SS Reducer, Stainless Reducer, Stainless Steel Reducer, 304/316 Stainless Steel Reducer
INQUIRY EMAIL

Acewell Industry is one of the top manufacturers and suppliers in Stainless Steel Reducer. We have more than 20 years of experiences in producing high quality stainless steel and alloy products. We provide the best prices, high quality, good service, and quick delivery time.

Product Details:

Grade	300S/400s/600s/Duplex/Alloy
Standard	ASTM, JIS, AISI, GB, DIN, EN
Type	Concentric Reducer, Eccentric Reducer

Chemical Components

	C	Mn	P	S	Si	Cr	Ni	Mo
304	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	8.0-11.0
304L	≤0.03	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	8.0-11.0
316	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
316L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
321	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	17.0-19.0	9.0-12.0
309S	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	22.0-24.0	12.0-16.0	≤0.75
310S	≤0.08	≤2.00	≤0.035	≤0.03	≤1.00	24.0-26.0	19.0-22.0	≤0.75
317	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	11.0-14.0	3.0-4.0
317L	≤0.035	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	11.0-15.0	3.0-4.0

Physical Properties

	Tensile Strength (MPA)	Yield Strength (MPA)	Elongation %	Density
304	≥515	≥205	≥40	7.93
304L	≥485	≥170	≥40	7.93
316	≥515	≥205	≥40	7.98
316L	≥485	≥170	≥40	7.98
321	≥515	≥205	≥40	7.98
309S	≥515	≥205	≥40	7.98
310S	≥515	≥205	≥40	7.98
317	≥515	≥205	≥40	7.98
317L	≥515	≥205	≥40	7.98

Applictaion:

①When there is a change in the flow rate of the fluid in the pipeline, such as an increase or decrease, and the flow rate requirement does not change much, a reducer pipe needs to be used.

②At the inlet of the pump, a reducing pipe is required to prevent cavitation.

③At the joints with instruments such as flow meters and control valves, reducing pipes are also required to match the joints of the instruments.

Inspection: Strict inspection is from raw materials to finished product. Eddy Current Testing before packaging is must. Unqualified products will be destroyed. Third party inspection is accepted.

Package: Wooven bags, plywood box, wooden box, plastic cap on both ends, or customized. Standard export sea-worthy packaging, inner waterproof paper with outer iron packaging which is fixed on a fumigated woodenpallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Certificates: We have ISO, SGS, TUV, BV etc.

Shipping Service: We have self-operated logistics at cost price, and cooperate with overseas agents all over the world to make delivery safely, timely and easily.
