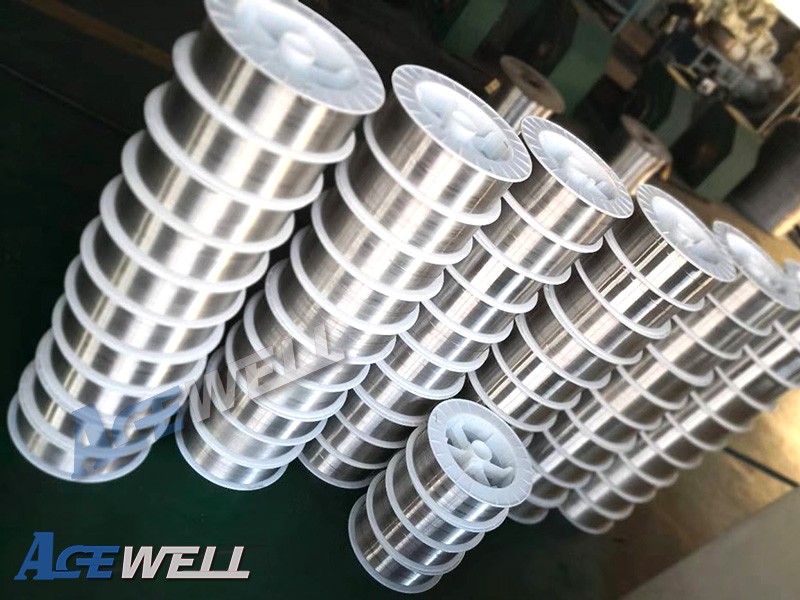

Stainless Steel Tiny Wire

Product Item : ACE4-3-3
Category： Stainless Steel Wire
Grade: 300s,400s,600s,Duplex,Alloy
Standard: ASTM, GB, EN, JIS, GOST, DIN
Size: 0.3-6mm
Condition: Soft, Mid-Hard, Hard
Product description：Stainless Steel Tiny Wire, Stainless Tiny Wire
INQUIRY EMAIL

Acewell Industry is one of the top manufacturers and suppliers in Stainless Steel Tiny Wire. We have more than 20 years of experiences in producing high quality stainless steel and alloy products. We provide the best prices, high quality, good service, and quick delivery time.

Product Details:

Grade	300S/400s/600s/Duplex/Alloy
Standard	ASTM, JIS, AISI, GB, DIN, EN
Condition	Soft, Mid-Hard, Hard
Size	0.3-6mm as required

Chemical Components

	C	Mn	P	S	Si	Cr	Ni	Mo
304	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	8.0-11.0
304L	≤0.03	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	8.0-11.0
316	≤0.08	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
316L	≤0.03	≤2.00	≤0.045	≤0.03	≤0.75	16.0-18.0	10.0-14.0	2.0-3.0
321	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	17.0-19.0	9.0-12.0
309S	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	22.0-24.0	12.0-16.0	≤0.75
310S	≤0.08	≤2.00	≤0.035	≤0.03	≤1.00	24.0-26.0	19.0-22.0	≤0.75
317	≤0.08	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	11.0-14.0	3.0-4.0
317L	≤0.035	≤2.00	≤0.045	≤0.03	≤1.00	18.0-20.0	11.0-15.0	3.0-4.0

Physical Properties

	Tensile Strength (MPA)	Yield Strength (MPA)	Elongation %	Density
304	≥515	≥205	≥40	7.93
304L	≥485	≥170	≥40	7.93
316	≥515	≥205	≥40	7.98
316L	≥485	≥170	≥40	7.98
321	≥515	≥205	≥40	7.98
309S	≥515	≥205	≥40	7.98
310S	≥515	≥205	≥40	7.98
317	≥515	≥205	≥40	7.98
317L	≥515	≥205	≥40	7.98

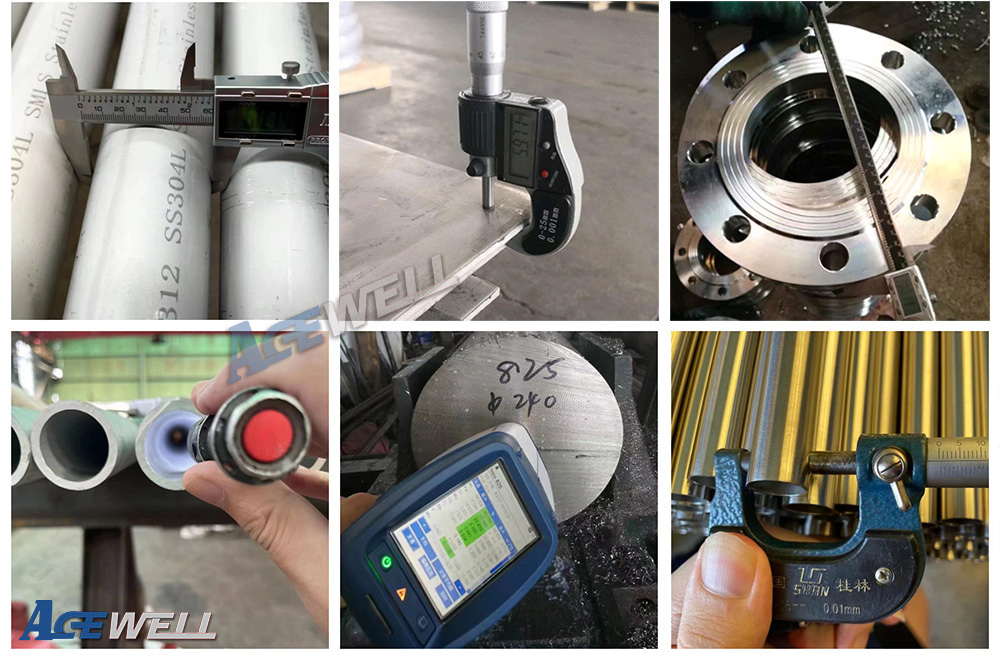

Inspection: Strict inspection is from raw materials to finished product. Eddy Current Testing before packaging is must. Unqualified products will be destroyed. Third party inspection is accepted.

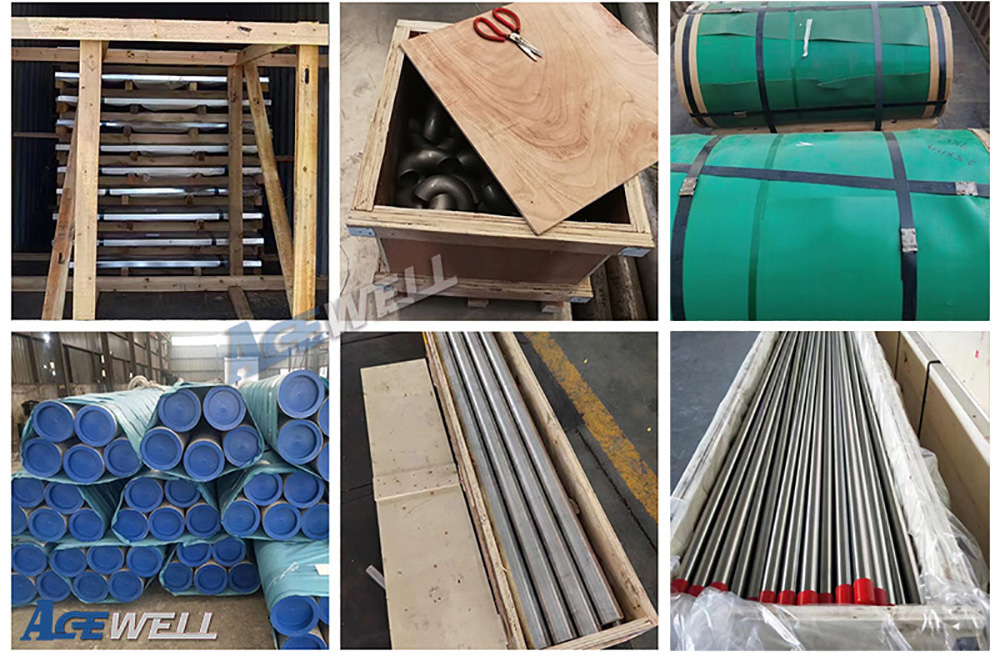

Package: Wooven bags, plywood box, wooden box, plastic cap on both ends, or customized. Standard export sea-worthy packaging, inner waterproof paper with outer iron packaging which is fixed on a fumigated woodenpallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

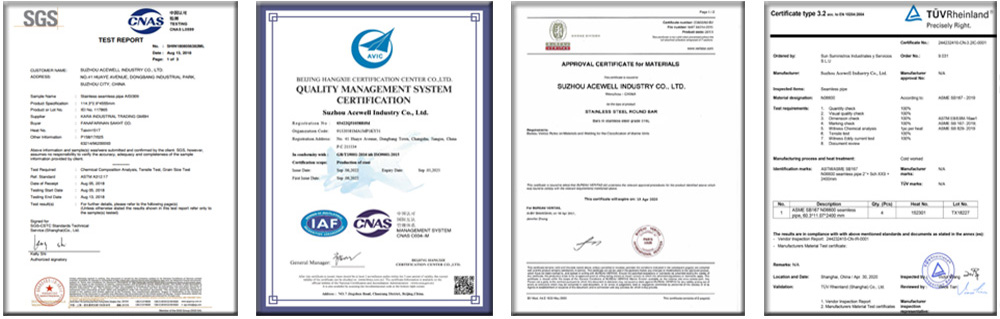

Certificates: We have ISO, SGS, TUV, BV etc.

Shipping Service: We have self-operated logistics at cost price, and cooperate with overseas agents all over the world to make delivery safely, timely and easily.
