  • 317/317L Stainless Steel Bar/Rod

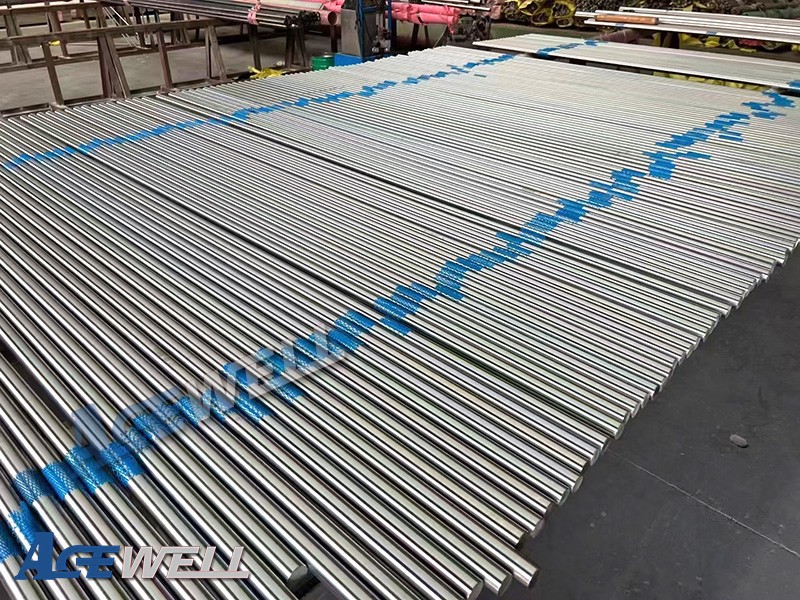

317/317L Stainless Steel Bar/Rod

  • Product Item : ACE4-1-4
  • Category: Stainless Steel Bar
  • Grade: 317, 317L
  • Standard: ASTM, GB, EN, JIS, GOST, DIN
  • Diameter: Cold Rolled φ2-50mm Hot Rolled φ5-110mm Forged φ110-550mm
  • Length: 0.5-12m as required
  • Product description:317 Stainless Steel Bar, 317L Stainless Steel Bar, 317 Stainless Steel Rod, 317L Stainless Steel Rod
  • INQUIRY   EMAIL

Acewell Industry is one of the top manufacturers and suppliers in 317/317L stainless steel bar/rod. We have more than 20 years of experiences in producing high quality stainless steel and alloy products. We provide the best prices, high quality, good service, and quick delivery time.

Product Details: Grade 317 stainless steel Pitting corrosion resistance is better than 316 steel. It has high strength and corrosion resistance. It is recommended to use chip breakers.

Grade
317/317L
Standard
ASTM, JIS, AISI, GB, DIN, EN
Diameter
Cold Rolled φ2-50mm/Hot Rolled φ5-110mm/Forged φ110-550mm
Length

0.5-12m as required

Tolerance
H9 H11
Surface No.1, 2B, BA, No.4, Hairline, 8K, Mirror
Shape

Round, Square, Rectangular, Triangle, Hex, Thread Bar

Chemical Components


C
Mn P S Si Cr Ni
Mo
317
≤0.08
≤2.00
≤0.045
≤0.03
≤1.00
18.0-20.0
11.0-14.0
3.0-4.0
317L ≤0.035
≤2.00
≤0.045
≤0.03
≤1.00
18.0-20.0
11.0-15.0
3.0-4.0

Physical Properties


Tensile Strength (MPA)
Yield Strength (MPA)
Elongation %
Density
317 ≥515
≥205
≥40
7.98
317L ≥485
≥170
≥40
7.98

Applictaion: 317 find wide application in  printing and dyeing equipment, Pulping paper, Textile, Chemical equipment.

Inspection: Strict inspection is from raw materials to finished product. Eddy Current Testing before packaging is must. Unqualified products will be destroyed. Third party inspection is accepted.

Package: Wooven bags, plywood box, wooden box, plastic cap on both ends, or customized. Standard export sea-worthy packaging, inner waterproof paper with outer iron packaging which is fixed on a fumigated woodenpallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.

Certificates: We have ISO, SGS, TUV, BV etc.

Shipping Service: We have self-operated logistics at cost price, and cooperate with overseas agents all over the world to make delivery safely, timely and easily.
